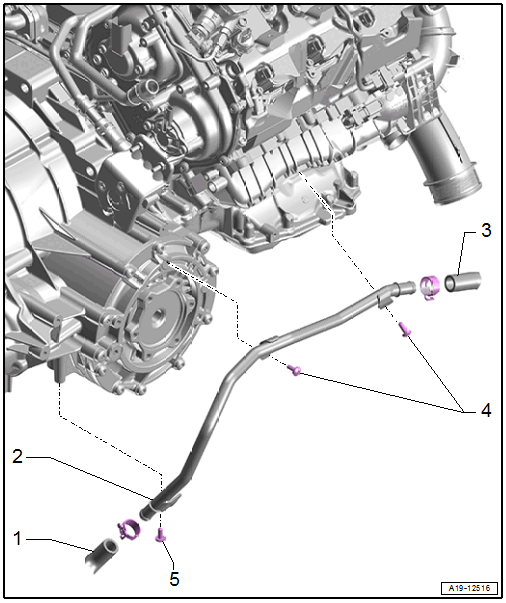

Overview - Coolant Pipes, Transmission Side
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Audi S5, 2022 Audi RS 5 Sportback, 2022 Audi RS 5, 2021 Audi S5, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Coolant Hose
- Right Coolant Pipe
- Removing and Installing. Refer to RIGHT COOLANT PIPE, REMOVING AND INSTALLING .
- Coolant Hose
- Bolts
- 9 Nm
- Bolt
- 9 Nm
