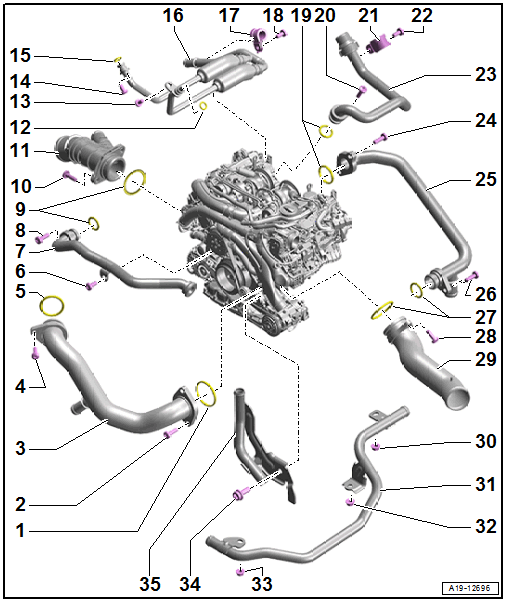

Overview - Coolant Pipes, 2.9L Engine-Side
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Audi S5, 2022 Audi RS 5 Sportback, 2022 Audi RS 5, 2021 Audi S5, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- The marking on the coolant pipes and ends of coolant hoses must align.
- O-Ring
- Always replace after removing.
- Bolt
- 9 Nm
- Left Front Coolant Pipe
- Removing and Installing. Refer to LEFT FRONT COOLANT PIPE, REMOVING AND INSTALLING, 2.9L ENGINE .
- Bolt
- 9 Nm
- O-Ring
- Always replace after removing.
- Bolt
- 9 Nm
- Front Coolant Pipe
- Always replace after removing.
- Removing and Installing. Refer to FRONT COOLANT PIPE, REMOVING AND INSTALLING, 2.9L ENGINE .
- Bolt
- 9 Nm
- O-Rings
- Always replace after removing.
- Bolt
- 9 Nm
- Connection
- O-Ring
- Always replace after removing.
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- O-Ring
- Always replace after removing.
- Large Right Rear Coolant Pipe
- Removing and Installing. Refer to LARGE RIGHT REAR COOLANT PIPE, REMOVING AND INSTALLING, 2.9L ENGINE .
- Clamp
- Bolt
- 9 Nm
- O-Rings
- Always replace after removing.
- Bolt
- 9 Nm
- Clamp
- Bolt
- 9 Nm
- Small Right Rear Coolant Pipe
- Removing and Installing. Refer to SMALL RIGHT REAR COOLANT PIPE, REMOVING AND INSTALLING, 2.9L ENGINE .
- Bolt
- 9 Nm
- Rear Left Coolant Pipe
- Removing and Installing. Refer to LEFT REAR COOLANT PIPE, REMOVING AND INSTALLING, 2.9L ENGINE .
- Bolt
- 9 Nm
- O-Rings
- Always replace after removing.
- Bolt
- 9 Nm
- Connection
- Nut
- 9 Nm
- Left Coolant Pipe
- Removing and Installing. Refer to LEFT COOLANT PIPE, REMOVING AND INSTALLING, 2.9L ENGINE .
- Nut
- 9 Nm
- Nut
- 9 Nm
- Bolt
- 20 Nm
- Lower Front Coolant Pipe
- Removing and Installing. Refer to LOWER FRONT COOLANT PIPE, REMOVING AND INSTALLING, 2.9L ENGINE .

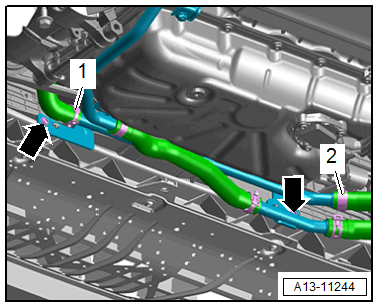

Coolant pipes on Lower Lock Carrier - Tightening Specification
-- Tighten the bolts -arrows- to 4.5 Nm.
