Lower Front Coolant Pipe, Removing And Installing, 2.9L Engine: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Audi S5, 2022 Audi RS 5 Sportback, 2022 Audi RS 5, 2021 Audi S5, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the ribbed belt tensioner for the A/C compressor. Refer to RIBBED BELT, REMOVING AND INSTALLING .

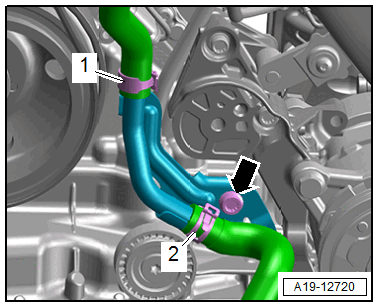

-- Loosen the hose clamps -1 and 2-, then clamp off the coolant hose with the :3094 and remove.
-- Remove the bolt -arrow- and remove the coolant pipe.
