Large Right Rear Coolant Pipe, Removing And Installing, 2.9L Engine: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Audi S5, 2022 Audi RS 5 Sportback, 2022 Audi RS 5, 2021 Audi S5, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING, 2.9L ENGINE .
-- Remove the right catalytic converter (refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING ) move with the heated oxygen sensor connected to the side and secure, to do so free up the wire.

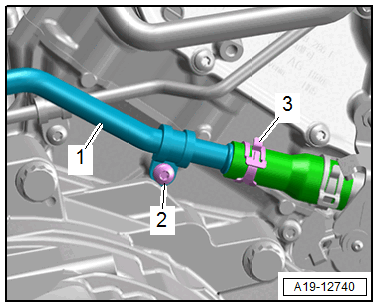

-- Remove the bolts -1 and 2- and remove the coolant pipes from the turbochargers.
-- Remove the bolt -2-.
-- Loosen the hose clamp -3- and remove the coolant pipe -1-.
