Rear Lid Seal, Removing And Installing, A4 AVANT From Product Improvement: Removing

WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2022 Audi S5 Sportback, 2022 Audi RS 5 Sportback, 2022 Audi A5 Sportback, 2021 Audi S5 Sportback, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

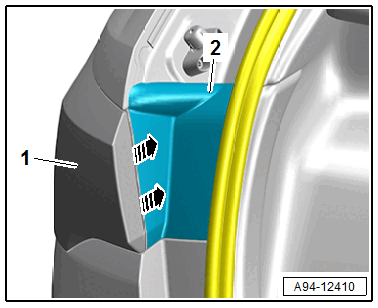

-- To release the catches on the cover -2-, push the cover by hand on the edge forward in direction of -arrows-.

GWWA94-12410Courtesy of AUDI OF AMERICA, LLC

-- Remove the cover from the tail lamp -1-.

-- Remove the rear lid seal from the body flange.
