Rear Parking Aid Warning Buzzer -H15-, REMOVING AND INSTALLING, CONVERTIBLE: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Audi S5 Sportback, 2022 Audi A5 Sportback, 2021 Audi S5 Sportback, 2021 Audi RS 5 Sportback, and 2021 Audi A5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

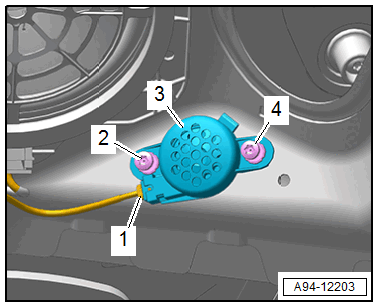

-- Remove the right side trim panel. Refer to SIDE TRIM PANEL, REMOVING AND INSTALLING .
-- Remove the bolts -2 and 4-.
-- Remove the rear parking aid warning buzzer -3- with the expanding clip.
-- Disconnect the connector -1-.
