Turbocharger, Removing And Installing, Cylinder Bank 2 (Left) 2.9L Engine: Removing
WARNING: This page is about a different car, the 2022 Audi S5 Sportback, 2022 Audi RS 5 Sportback, 2021 Audi S5 Sportback, 2021 Audi RS 5 Sportback, and 2020 Audi S5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the upper air duct pipe (refer to Air Duct Pipe, Removing And Installing ) and pivot to the left side.
-- Remove the Engine Control Module -J623-. Refer to Engine Control Module -J623-, REMOVING AND INSTALLING .

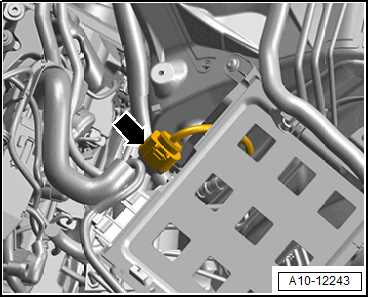

-- Free up the connector -arrow-.
-- Free up the coolant line -3- and wiring harness.
-- Remove the bolts -arrows- and remove the engine control module bracket -1-.
All additional procedures are described under: Turbocharger, Removing And Installing .
