Charge Air Cooler, Removing And Installing, 2.9L Engine: Removing

WARNING: This page is about a different car, the 2022 Audi S5 Sportback, 2022 Audi RS 5 Sportback, 2021 Audi S5 Sportback, 2021 Audi RS 5 Sportback, and 2020 Audi S5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

-- Pay attention to the guidelines for clean working conditions. Refer to Guidelines For Clean Working Conditions .

-- Remove the bumper cover. Refer to Bumper Cover, Removing And Installing .

-- Drain the coolant (refer to Coolant, Draining And Filling, 2.9L Engine ) place the container of the Coolant Collection System :VAS5014 or the Shop Crane - Drip Tray:VAS6208 underneath.

Vehicles with Version 2 Charge Air System:

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2- for the Charge Air Pressure Sensor -G31-.

-- Loosen the hose clamps -arrows- and remove the air duct pipe -1-.

Vehicles with Version 1 Charge Air System:

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamp -5- for the air duct hose.

Continuation for All Vehicles:

-- Remove the bolts -arrows-.

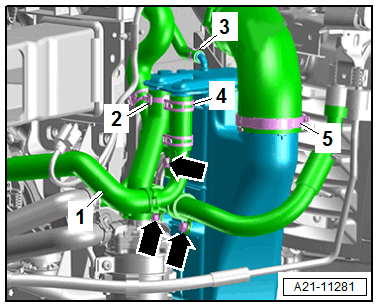

-- Loosen the hose clamps -2, 3 and 4- and remove the coolant hoses.

-- Remove the bolts -arrows-.

Courtesy of AUDI OF AMERICA, LLC

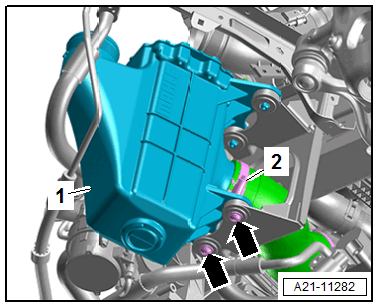

-- Loosen the air duct hose clamp -2-.

-- Disengage the charge air cooler -1- upward and remove toward the rear, at the same time remove the air duct hoses.
