Upper Air Duct Pipe, Removing And Installing, 3.0L Engine: Removing

WARNING: This page is about a different car, the 2022 Audi S5 Sportback, 2022 Audi RS 5 Sportback, 2021 Audi S5 Sportback, 2021 Audi RS 5 Sportback, and 2020 Audi S5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

-- Pay attention to the guidelines for clean working conditions. Refer to Guidelines For Clean Working Conditions .

-- Remove the engine cover. Refer to Engine Cover, Removing And Installing .

-- Remove the lock carrier cover. Refer to Front Bumper .

-- Remove the front noise insulation. Refer to Noise Insulation, Removing And Installing .

-- Remove the bolts -arrows- and then remove the air guides -1 and 2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the upper air duct -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Release the left and right catches in direction of -arrows- and remove the retaining pin -1- for the radiator upward.

Courtesy of AUDI OF AMERICA, LLC

-- Move the radiator slightly forward and secure it with for example with a plastic wedge so it does not tilt back.

-- Free up the wiring harness -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Loosen the hose clamp -2- and remove the air duct pipe.

-- Remove the bolts -arrows-.

-- Remove the connection and hose -1- for the crankcase ventilation to do so press the release buttons on both sides.

-- Move the connection to the side.

-- Disconnect the connector -3- for the Charge Air Pressure Sensor -G31-.

Courtesy of AUDI OF AMERICA, LLC

-- Free up the coolant ventilation line -2-.

-- Loosen the hose clamp -1- and remove the air duct pipe and tie up to the left side.

-- Remove the Throttle Valve Control Module -GX3-. Refer to Throttle Valve Control Module -GX3-, Removing And Installing .

-- Free up the wiring harness.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-, use the : T40398 if necessary.

-- Remove the crankcase ventilation hose -1- by pressing the release buttons on both sides.

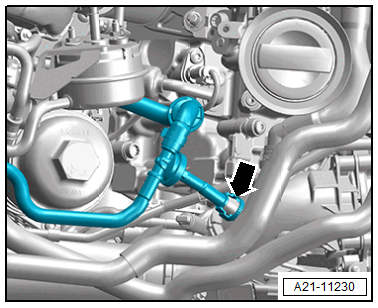

-- If installed, remove the hose -arrow- for the EVAP system to do so push the release buttons on both sides.

Courtesy of AUDI OF AMERICA, LLC

-- If necessary, disconnect the connector -2- for the Recirculation Valve, Bank 1 -N625-.

Courtesy of AUDI OF AMERICA, LLC

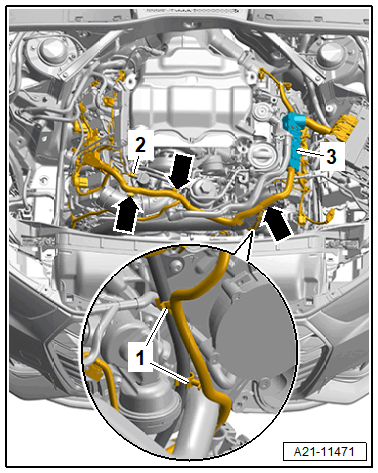

-- Free up electrical wiring harness -arrows- and the clips -1- from the oil dipstick tube.

-- Pull the wiring duct -3- off the ball pin and free up.

-- Disconnect the connector -4- for the Manifold Absolute Pressure Sensor -G71- and free up the wiring harness -2-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows-, use the : T40398 if necessary.

-- Remove the vacuum hose -6- and hose -3- for the crankcase ventilation to do so press the release buttons on both sides.

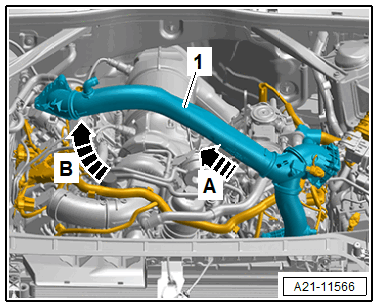

-- Remove the upper air duct pipe -1- from the intake manifold, push to the right -arrow A- and at the same time pivot to the right -arrow B- upward and remove. To do so push the coolant hose on the left cylinder head to the side and guide out the upper air duct pipe on the wiring harness.

Courtesy of AUDI OF AMERICA, LLC
