Camshaft Timing Chain, Removing From Camshafts, Cylinder Bank 1 (Right): Notes
WARNING: This page is about a different car, the 2022 Audi S5 Sportback, 2021 Audi S5 Sportback, and 2020 Audi S5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
Special tools and workshop equipment required
- Torque Wrench 1331 5-50Nm: VAG1331
- Electronic Torque Wrench 3-60Nm: VAS6583
- Locking Pins: T03006
- Crankshaft Locking Pin: T40069 (with the engine removed)
- Wrench - 21mm: T40263
- Camshaft Lock: T40264/3
- Adapter: T40314
- Camshaft locking device: T40331
- Camshaft Positioning Tool: T40331/1
- Camshaft Positioning Tool: T40331/5
- : T40331/6
- Bolts: T40331/9
- Socket E24: T90000
- Counter holder: T90001
- Counterholder: T90002
- Torque Wrench Insert - Ring Tool Attachment AF41: VAS261001
NOTE:
For the following procedure the camshaft timing chain remains on the engine.

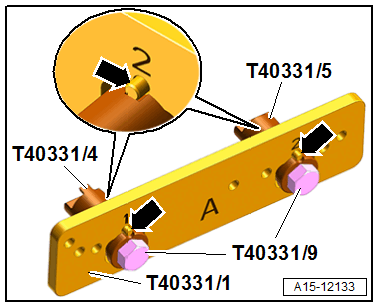

Camshaft Locking Device: T40331 , Preparing
- The lettering "A" on the : T40331/1 points forward.
- The : T40331/4 and : T40331/5 as well as the washers on the : T40331/9 must be positioned using the alignment pins -arrows-.
-- Tighten the bolts hand-tight.
