Turbocharger Vacuum Diaphragm, Replacing, 3.0L Engine: Removing
WARNING: This page is about a different car, the 2022 Audi S5 Sportback, 2022 Audi RS 5 Sportback, 2021 Audi S5 Sportback, 2021 Audi RS 5 Sportback, and 2020 Audi S5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the engine cover and heat shield. Refer to ENGINE COVER, REMOVING AND INSTALLING .
-- Remove the oil filter element. Refer to ENGINE OIL .

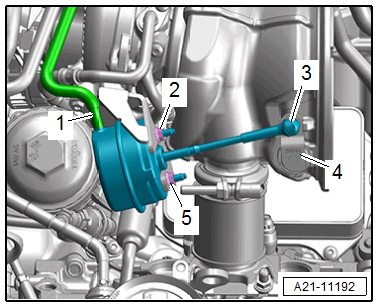

-- Remove the vacuum hose -1- from the vacuum diaphragm at the same time do not damage it.
-- Remove the locking spring -3- and control rod from the turbocharger operating lever -4-.
-- Remove the nuts -2 and 5- and remove the vacuum diaphragm.
