Overview - Front Three-Point Seat Belt, A5 Cabriolet

WARNING: This page does not describe the selected car, but rather 9 other vehicles, including the 2022 Audi S5 Sportback, 2022 Audi RS 5 Sportback, 2022 Audi RS 5, 2022 Audi A5 Sportback, and 2021 Audi S5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

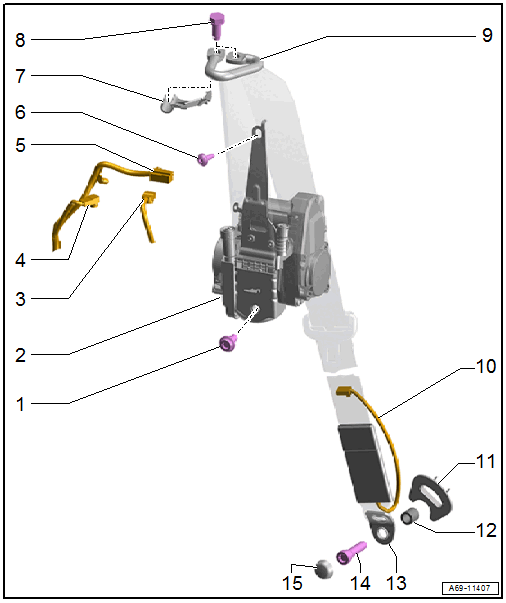

Fig 1: Exploded View Of Front Three-Point Seat Belt, A5 Cabriolet

Courtesy of AUDI OF AMERICA, LLC

Bolt
- 45 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
Automatic Belt Retractor with Electric Belt Tensioner
- Removing and Installing. Refer to FRONT THREE-POINT SEAT BELT, REMOVING AND INSTALLING, A5 CABRIOLET .
- The Left Front Seat Belt Tensioner Control Module -J854- / Right Front Seat Belt Tensioner Control Module -J855- must be adapted after replacing the automatic belt retractors using the Vehicle Diagnostic Tester.
Connector
- For the seat belt force limiter
Connector
- For the seat belt tensioner igniter 1
Connector
- For the front seat belt tensioner control module
Bolt
- 4 Nm
Front Seat Belt Guide
- Clip into the seat belt relay
- Removing and Installing. Refer to FRONT SEAT BELT GUIDE, REMOVING AND INSTALLING .
Bolt
- 45 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
- Quantity: 2
Seat Belt Guide
- Removing and Installing. Refer to FRONT BELT RELAY, REMOVING AND INSTALLING .
Connector
- For seat belt microphone
Cap
- For seat belt microphone wire
Stop Sleeves
Belt End Fitting
- Removing and Installing. Refer to FRONT BELT END FITTING, REMOVING AND INSTALLING, A5 CABRIOLET .
Bolt
- 45 Nm
- Replace the bolt if it was removed because of an accident when the seat belt was buckled.
Cap
