Washer Nozzles, Removing And Installing: Removing
WARNING: This page does not describe the selected car, but rather 8 other vehicles, including the 2022 Audi S5 Sportback, 2022 Audi RS 5 Sportback, 2022 Audi A5 Sportback, 2021 Audi S5 Sportback, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the air intake grille. Refer to Front Bumper .
-- RS 5; remove the bumper cover. Refer to BUMPER COVER, REMOVING AND INSTALLING .
-- Place the drip tray underneath.

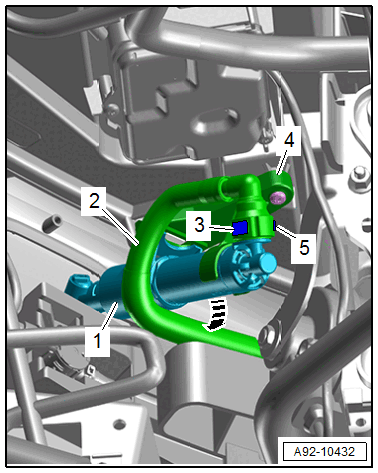

-- Tilt the washer nozzle -1- out of the mount on the bracket -4- in direction of -arrow- and remove.
-- Remove the washer fluid hose -2- by pressing the release buttons -3 and 5-.
-- Seal off the hose coupling with clean plugs from the :VAS6122 .
