Overview - Charge Air System, 3.0L Engine-Side, Version 1: Notes

WARNING: This page is about a different car, the 2022 Audi S5, 2021 Audi S5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

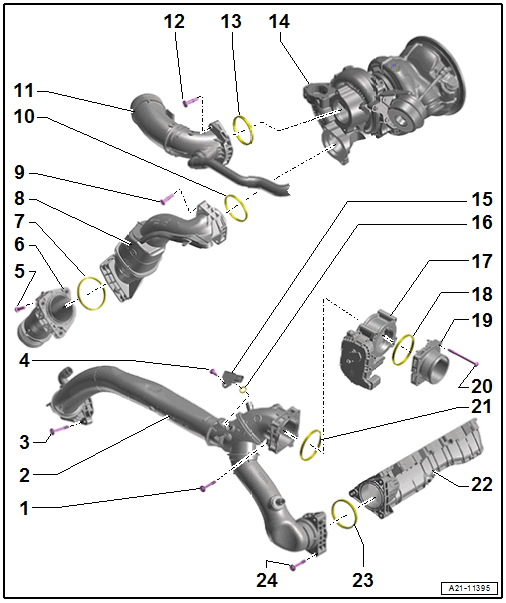

Fig 1: Exploded View Of Charge Air System, 3.0L Engine-Side, Version 1

Courtesy of AUDI OF AMERICA, LLC

Bolt
- Tightening Specifications and Sequence. Refer to Figure.
Upper Air Guide Pipe
- Removing and installing. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING .
Bolt
- Tightening Specifications and Sequence. Refer to Figure.
- Thread cutting
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
Bolt
- 5 Nm
Bolt
- 8 Nm
- For model versions
Connection
- Model versions
Seal
- Replace after removing.
- For model versions
Air Duct Pipe
- There are different versions. Refer to the Parts Information for the allocation.
Bolt
- 9 Nm
Seal
- Replace after removing.
Intake Manifold with Crankcase Ventilation Hose
- Removing and Installing. Refer to INTAKE MANIFOLD, REMOVING AND INSTALLING .
- The crankcase ventilation hose cannot be separated from the intake manifold. Note the information:
  - Crankcase Ventilation Hose on Intake Manifold, Rest of World Vehicles. Refer to Crankcase Ventilation Hose on Intake Manifold, Rest of World Vehicles .
  - Crankcase Ventilation Hose on Intake Manifold, USA Vehicles. Refer to Crankcase Ventilation Hose on Intake Manifold, USA Vehicles .
Bolt
- 9 Nm
Seal
- Replace after removing.
Turbocharger
- Overview. Refer to OVERVIEW - TURBOCHARGER, 3.0L ENGINE .
Intake Air Temperature Sensor -G42- /Manifold Absolute Pressure Sensor -G71-
- Removing and Installing. Refer to Intake Air Temperature Sensor -G42- /Manifold Absolute Pressure Sensor -G71-, REMOVING AND INSTALLING .
O-Ring
- Not available separately; replace if leaking -item ) List Item:Intake Air Temperature Sensor -G42- /Manifold Absolute Pressure Sensor -G71- or damaged
Throttle Valve Control Module -GX3-
- Removing and installing. Refer to Throttle Valve Control Module -GX3-, REMOVING AND INSTALLING
- Cleaning. Refer to Throttle Valve Control Module -GX3-, CLEANING .
Seal
- Replace after removing.
Connection
Bolt
- Step 1: 5 Nm
- Step 2: 6 Nm
- Thread cutting
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
Seal
- Replace after removing.
Intake Manifold
- Overview. Refer to OVERVIEW - INTAKE MANIFOLD .
Seal
- Replace after removing.
Bolt
- Thread cutting
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.

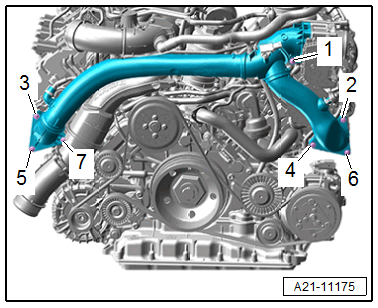

- Tightening Specifications and Sequence. Refer to Figure.
