Exhaust Door Control Unit, Removing And Installing, 2.9L Engine: Removing
WARNING: This page is about a different car, the 2022 Audi S5, 2021 Audi S5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Lower the rear section of the exhaust system. Refer to MUFFLER, REMOVING AND INSTALLING .

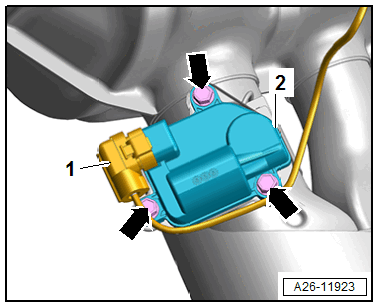

-- Disconnect the connector -1-.
-- Remove the bolts -arrows- and remove the exhaust door control unit -2-.
