Exhaust Door Control Unit, Removing And Installing, 2.9L Engine: Installing
WARNING: This page is about a different car, the 2022 Audi S5, 2021 Audi S5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:
- Replace the bolts after removing them.
-- Bring the exhaust door control unit into its installed position

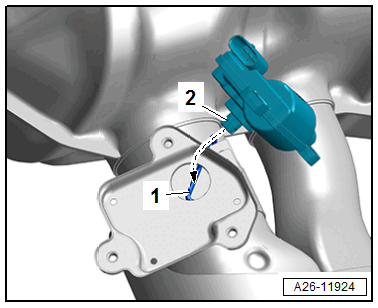

Installation Position of the Exhaust Door Control Unit Version 1:
- The spring -2- must engage in the grove of the exhaust door control unit -1-.
Installation Position of the Exhaust Door Control Unit Version 2:
-- Bring the spring -3- at the exhaust door -2- in installation position.
-- Place the exhaust door control unit -1- onto the exhaust door in direction of -arrows-.
