Overview - EVAP System, Market-Specific Rest Of World
WARNING: This page is about a different car, the 2022 Audi S5, 2021 Audi S5, 2020 Audi S5, and 2020 Audi A5 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The overview only applies to TFSI vehicles.

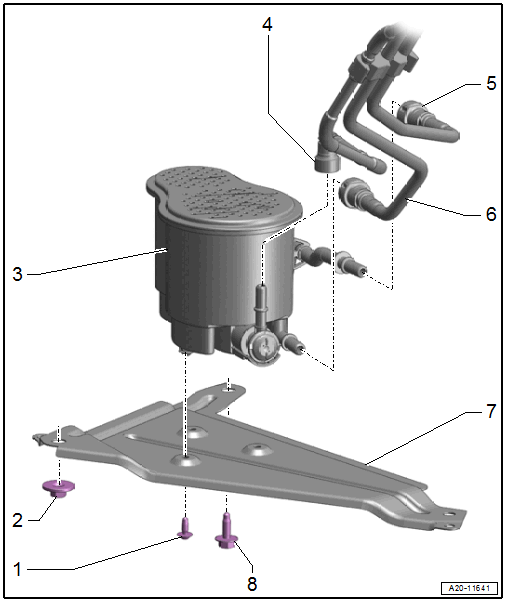

- Bolt
- Quantity: 3
- 8 Nm
- Nut
- Quantity: 2
- 20 Nm
- EVAP Canister
- Component location: right rear
- Removing and Installing. Refer to EVAP CANISTER, REMOVING AND INSTALLING, MARKET-SPECIFIC REST OF WORLD .
- Bleeder Line
- From the fuel tank
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Vent Line
- Vents out to the right rear under the wheel housing liner
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Bleeder Line
- To the EVAP Canister Purge Regulator Valve 1 -N80-
- Connector Couplings, Disconnecting and Connecting. Refer to CONNECTOR COUPLINGS, DISCONNECTING .
- Clipped to the underbody
- Bracket
- Bolt
- 20 Nm
