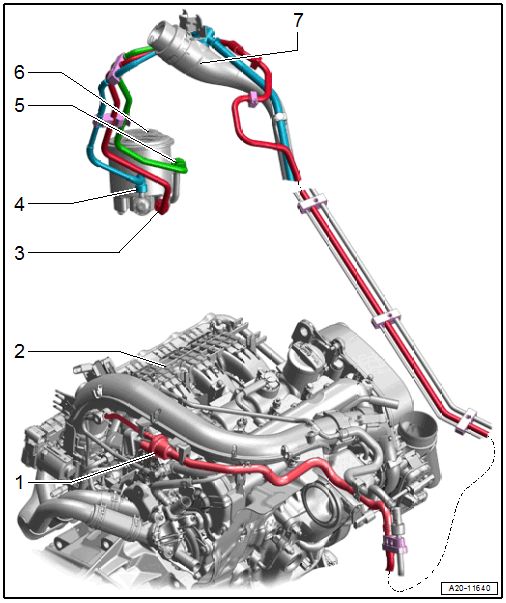

Connection Diagram - EVAP System, Market-Specific Rest Of World
WARNING: This page is about a different car, the 2022 Audi S5, 2021 Audi S5, 2020 Audi S5, and 2020 Audi A5 Quattro. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
The connection diagram applies to TFSI vehicles.
- EVAP Canister Purge Regulator Valve 1 -N80-
- Engine
- Bleeder Line
- To the EVAP Canister Purge Regulator Valve 1 -N80-
- Bleeder Line
- From the fuel tank
- Vent Line
- Vents out to the right rear under the wheel housing liner
- EVAP Canister
- Fuel Tank Filler Neck
