Radiator, Removing And Installing: Removing

WARNING: This page is about a different car, the 2020 Audi A5 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front noise insulation. Refer to Noise Insulation, Removing And Installing .

-- Remove the bumper cover bracket together with the impact member. Refer to Overview - Lock Carrier .

-- Place the container of the :VAS5014 or the :VAS6208 underneath.

Courtesy of AUDI OF AMERICA, LLC

-- A4: remove the left headlamp. Refer to Headlamp, Removing And Installing .

-- Pry up the clamp -2- and remove the coolant hose from the lower right of the radiator.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There Is a Risk of Injury If the Radiator Fan Turns on by Itself

- When performing procedures near the radiator maintain a distance to the radiator.

-- Disconnect the radiator fan connector -arrow-.

-- Release the catches -arrow- and remove the air ducts -1 and 3-.

Courtesy of AUDI OF AMERICA, LLC

-- Unclip the air duct -2-.

-- Remove the bolts -arrows- and air duct -1-.

Courtesy of AUDI OF AMERICA, LLC

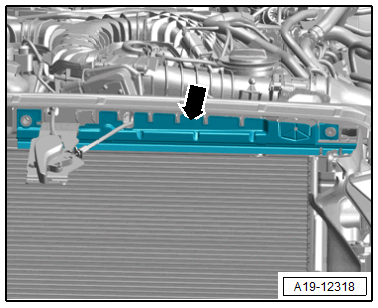

-- Remove the upper air duct -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the charge air cooler. Refer to Charge Air Cooler, Removing And Installing .

-- Disconnect the connector -2- for the High Pressure Sensor -G65-.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of Destroying the Refrigerant Lines by Tearing the Inner Film

- Never bend the refrigerant lines to a radius smaller than r = 100 mm.

-- Release the left and right catches in direction of -arrows- and carefully disengage the condenser -1- from the radiator and tie up to the side.

If the catches are damaged replace the radiator.

-- Lift the clamps -1 and 2-, remove and free up the coolant connection from the radiator.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right bolt -2- and push the radiator bracket -1- with the bolt toward the front in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

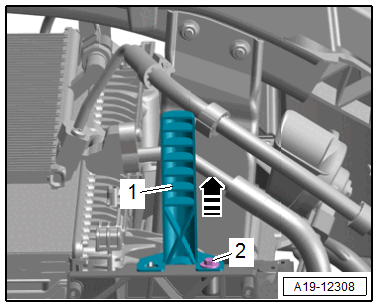

-- Release the left and right catches in direction of -arrows- and remove the retaining pin -1- for the radiator upward.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the radiator.

-- Press the fan shroud left and right locking tabs at the same time in direction of -arrow- and remove the fan shroud upward from the radiator.

Fig 1: Fan Shroud

Courtesy of AUDI OF AMERICA, LLC
