Fan Shroud, Removing And Installing: Removing

WARNING: This page is about a different car, the 2020 Audi A5 Quattro. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front noise insulation. Refer to Noise Insulation, Removing And Installing .

-- Remove the charge air cooler. Refer to Charge Air Cooler, Removing And Installing .

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

There is a risk of injury if the radiator fan turns on by itself.

- Disconnect the connectors.

-- Disconnect the radiator fan connector -arrow-.

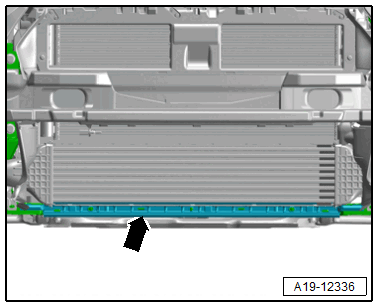

-- Unclip the lower air duct -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right bolt -2- for the radiator bracket -1-.

Courtesy of AUDI OF AMERICA, LLC

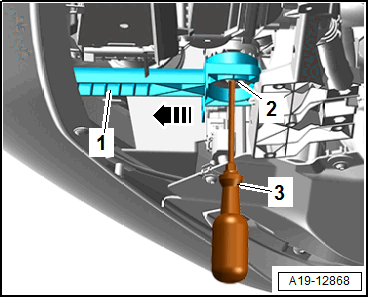

-- Remove the left and right bolt -2- for the radiator bracket -1- with the corresponding tool -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right radiator bracket -1- in the direction of -arrow-.

TIP:

For reinstallation, mark the installation position of the radiator bracket to the rubber bushing.

-- Press the fan shroud left and right locking tabs at the same time in direction of -arrow- and lift the fan shroud upward from the radiator.

Fig 1: Fan Shroud

Courtesy of AUDI OF AMERICA, LLC

-- Remove the fan shroud downward between the radiator and the lock carrier at the same time push the radiator pack in the lower area at the same time as far forward as possible.
