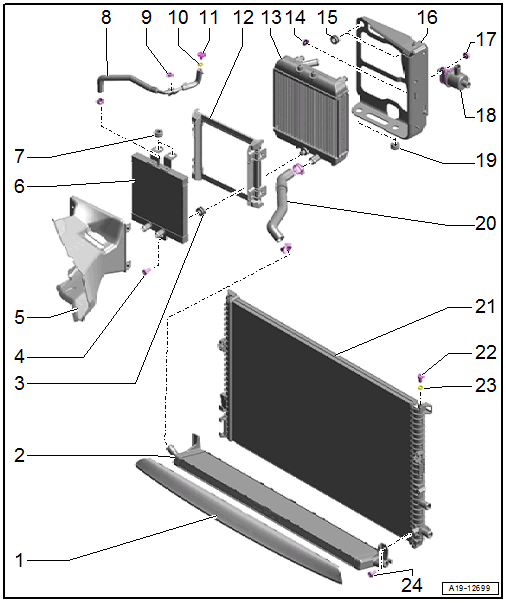

Overview - Auxiliary Radiator
WARNING: This page is about a different car, the 2022 Audi S5, 2022 Audi RS 5, 2021 Audi S5, 2021 Audi RS 5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Air Duct
- Lower Front Auxiliary Radiator
- Removing and Installing. Refer to LOWER FRONT AUXILIARY RADIATOR, REMOVING AND INSTALLING, 2.9L ENGINE .
- Grommet
- Bolt
Radiator with cast plenum chamber: 6 Nm
Radiator with plastic plenum chamber: 3.4 Nm
- Air Duct
- Radiator for Coolant Circuit for Transmission
- Grommet
- Coolant Hose Line
- Nut
- 9 Nm
- O-Ring
- Always replace after removing.
- Bleed Screw
- Install by hand all the way
- Air Duct
- Right Front Auxiliary Radiator
- Removing and Installing. Refer to RIGHT AUXILIARY RADIATOR, REMOVING AND INSTALLING, 2.9L ENGINE .
- Nut
- 20 Nm
- Grommet
- Bracket
- For auxiliary radiator
- Nut
- 9 Nm
- Coolant Thermostat
- Grommet
- Coolant Hose
- Front Auxiliary Radiator
- Removing and Installing. Refer to FRONT AUXILIARY RADIATOR, REMOVING AND INSTALLING, 2.9L ENGINE .
- If the catches for the condenser are damaged, replace the auxiliary radiator
- Bleed Screw
- 2 Nm
- O-Ring
- Bolt
- 5 Nm
