Fan Shroud, Removing And Installing, 3.0L Engine: Removing

WARNING: This page is about a different car, the 2022 Audi S5, 2022 Audi RS 5, 2021 Audi S5, 2021 Audi RS 5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the front noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .

-- Remove the charge air cooler. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING, 3.0L ENGINE .

-- Release the left and right catches in direction of -arrows- and remove the retaining pin -1- for the radiator upward.

Courtesy of AUDI OF AMERICA, LLC

-- Disconnect the connector -2- for the High Pressure Sensor -G65-.

Courtesy of AUDI OF AMERICA, LLC

CAUTION:

Risk of destroying the radiator for the coolant.

If the catches are damaged, the radiator must be replaced.

Risk of damaging refrigerant lines and hoses.

Do not bend, twist or stretch the refrigerant lines and hoses.

-- Release the left and right catches -arrows- disengage the condenser -1- from the radiator and tie up to the side.

-- Release the catches -2- and remove the lower air duct -1- for the radiator.

Courtesy of AUDI OF AMERICA, LLC

-- Place the container of the : VAS5014 or : VAS6208 underneath.

Courtesy of AUDI OF AMERICA, LLC

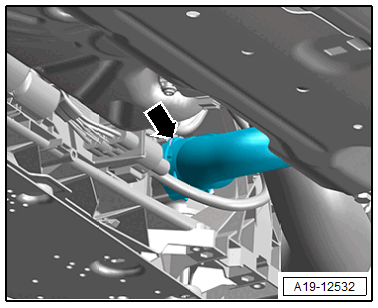

-- Lift the clamp -arrow- and remove the coolant hose from the radiator and drain the coolant.

-- Pry up the clamp -arrow- and support the left lower plug in the radiator.

Courtesy of AUDI OF AMERICA, LLC

Courtesy of AUDI OF AMERICA, LLC

WARNING:

There is a risk of hand injury if the radiator fan turns on by itself.

Do not reach into the radiator fan when disconnecting the connector.

-- Disconnect the radiator fan connector -arrow-.

-- Remove the left and right bolt -2- for the radiator bracket -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right bolt -2- for the radiator bracket -1- with the corresponding tool -3-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the left and right radiator bracket -1- in the direction of -arrow-.

TIP:

For reinstallation, mark the installation position of the radiator bracket to the rubber bushing.

Mark the installation position of the radiator bracket to the rubber bushing.

-- Press the fan shroud left and right locking tabs at the same time in direction of -arrow- and lift the fan shroud upward from the radiator.

Fig 1: Fan Shroud

Courtesy of AUDI OF AMERICA, LLC

-- Remove the fan shroud downward between the radiator and the lock carrier at the same time push the radiator pack in the lower area at the same time as far forward as possible.
