Small Right Rear Coolant Pipe, Removing And Installing, 2.9L Engine: Removing
WARNING: This page is about a different car, the 2022 Audi S5, 2022 Audi RS 5, 2021 Audi S5, 2021 Audi RS 5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING, 2.9L ENGINE .
-- Install the engine cover and heat shield. Refer to ENGINE COVER, REMOVING AND INSTALLING .

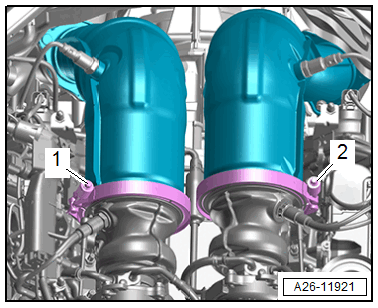

-- Vehicles without particulate filter: loosen the screw-type clamp -1- and push the catalytic converter slightly to the side.
-- Vehicle with particulate filter: remove the right catalytic converter. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING, 2.9L ENGINE WITH PARTICULATE FILTER .

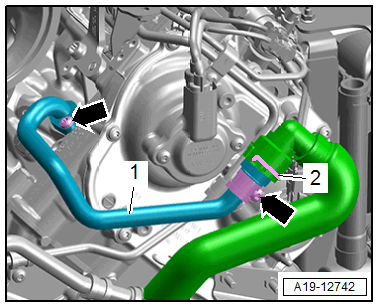

-- Lift the clamp -2- and remove the coolant hose.
-- Remove the bolts -arrows- and the coolant pipe -1-.
