Left Rear Coolant Pipe, Removing And Installing, 2.9L Engine: Removing
WARNING: This page is about a different car, the 2022 Audi S5, 2022 Audi RS 5, 2021 Audi S5, 2021 Audi RS 5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Drain the coolant. Refer to COOLANT, DRAINING AND FILLING, 2.9L ENGINE .
-- Remove the rear noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
-- Vehicle with particulate filter: remove the left catalytic converter. Refer to CATALYTIC CONVERTER, REMOVING AND INSTALLING, 2.9L ENGINE WITH PARTICULATE FILTER .

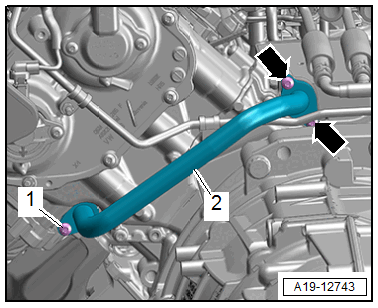

-- Remove the bolt -1-.
-- Install the engine cover and heat shield. Refer to ENGINE COVER, REMOVING AND INSTALLING .
-- Free up the electrical wire.
-- Remove the bolts -arrows- and remove the coolant pipe -2-.
