Left Front Coolant Pipe, Removing And Installing, 2.9L Engine: Removing
WARNING: This page is about a different car, the 2022 Audi S5, 2022 Audi RS 5, 2021 Audi S5, 2021 Audi RS 5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the lower air duct pipe. Refer to LOWER AIR DUCT PIPE, REMOVING AND INSTALLING, 2.9L ENGINE .
-- Loosen the hose clamp -1- and remove the air duct hose.

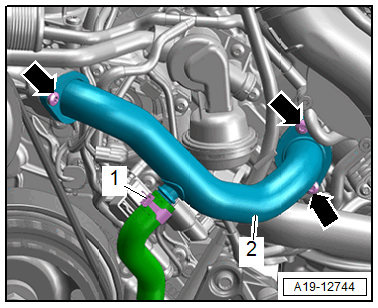

-- Remove the bolts -arrows- and remove the left front coolant pipe -2- from the coolant pump.
