Left Coolant Pipe, Removing And Installing, 2.9L Engine: Removing
WARNING: This page is about a different car, the 2022 Audi S5, 2022 Audi RS 5, 2021 Audi S5, 2021 Audi RS 5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Support the engine in the installation position (refer to ENGINE, SUPPORTING IN INSTALLATION POSITION ) and pretension it with the : 10-222A/11 until the pressure on the left engine mount is released.
-- Remove the noise insulation. Refer to NOISE INSULATION, REMOVING AND INSTALLING .
-- Place the container of the : VAS5014 or : VAS6208 underneath.

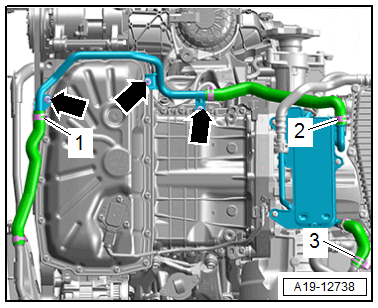

-- Clamp off the coolant hose -3- using the : 3094 .
-- Loosen the hose clamp -1-, then clamp off the coolant hose with the : 3094 and remove the hose.
-- Loosen the hose clamp -2- and remove the coolant hose.
-- Remove the nuts -arrows- and remove the coolant pipe toward the front to do so slightly lift the engine.
