Front Coolant Pipe, Removing And Installing, 2.9L Engine: Removing
WARNING: This page is about a different car, the 2022 Audi S5, 2022 Audi RS 5, 2021 Audi S5, 2021 Audi RS 5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the upper air duct pipe and pivot to the left side. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING, WITH RADIATOR INSTALLED 2.9L ENGINE . (If the radiator is removed due to preliminary work this step does not apply.)
-- Remove the ribbed belt from the coolant pump belt pulley. Refer to RIBBED BELT, REMOVING AND INSTALLING .

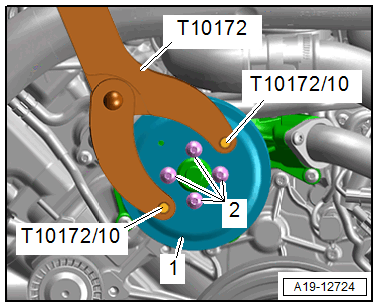

-- Position the : T10172A with the : T10172/10 on the belt pulley -1- and remove the bolts -2-.
-- Remove the belt pulley.

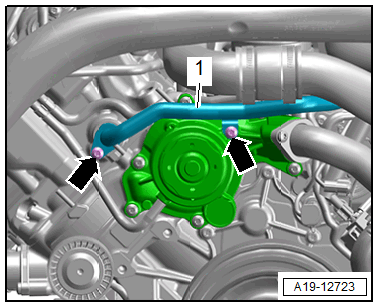

-- Remove the bolts -arrows- and remove the front coolant pipe -1- from the right cylinder head and from the shut-off valve.
