Belt Pulley Side Sealing Flange, Removing And Installing, 2.9L Engine: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Audi S5, 2022 Audi RS 5 Sportback, 2022 Audi RS 5, 2021 Audi S5, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Remove the vibration damper. Refer to VIBRATION DAMPER, REMOVING AND INSTALLING, 2.9L ENGINE .
-- Remove the upper air duct pipe. Refer to AIR DUCT PIPE, REMOVING AND INSTALLING, WITH RADIATOR INSTALLED 2.9L ENGINE .
-- Remove the left front coolant pipe. Refer to LEFT FRONT COOLANT PIPE, REMOVING AND INSTALLING, 2.9L ENGINE .

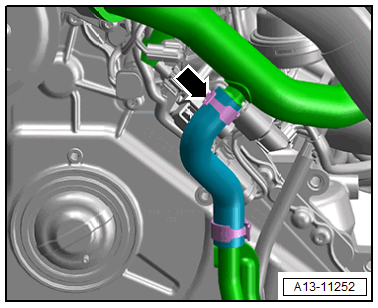

-- Loosen the hose clamp -arrow- and remove the coolant hose.
-- Disconnect the connector -3- and remove the Cylinder Head Coolant Valve -N489- slightly from the bracket -2-.
-- Disconnect the connector -1-.
-- Remove the bolts -arrows- and remove the bracket from the coolant valve and tie up to the side.
All additional procedures are described. Refer to SEALING FLANGE, REMOVING AND INSTALLING, BELT PULLEY SIDE .
