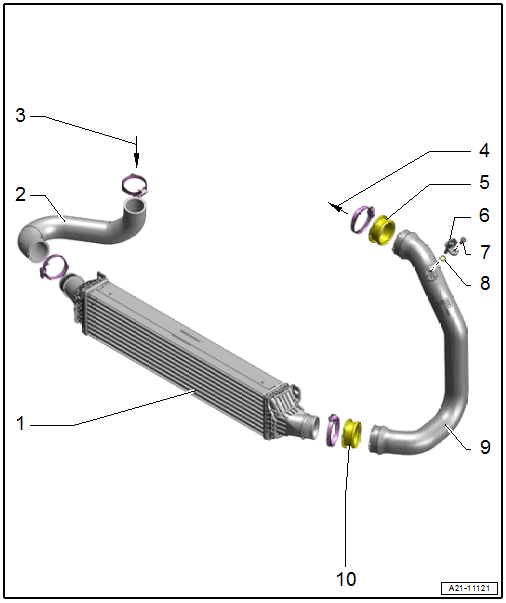

Overview - Charge Air System, 3.0L Engine
WARNING: This page is about a different car, the 2022 Audi S5, 2022 Audi RS 5, 2021 Audi S5, 2021 Audi RS 5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Charge Air Cooler
- Removing and Installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING, 3.0L ENGINE .
- If there are small impressions on the slats. Refer to RADIATOR AND CONDENSER ASSEMBLY .
- Air Duct Hose
- Must be free of oil and grease before installing
- From the Turbocharger
- To Intake Manifold
- Seal
- Replace if damaged
- Charge Air Pressure Sensor -G31-
- Removing and Installing. Refer to Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING .
- Bolt
- 7 Nm
- Repair solution for broken catch
- Position the bolt by hand and tighten it until it finds the old threads. Then tighten the bolt to the specification.
- Thread cutting
- O-Ring
- Not available separately; replace if leaking -item ) OVERVIEW - CHARGE AIR SYSTEM, 3.0L ENGINE - List Item: Charge Air Pressure Sensor -G31- or damaged
- Air Duct Pipe
- Must be free of oil and grease before installing
- Seal
- Replace if damaged
