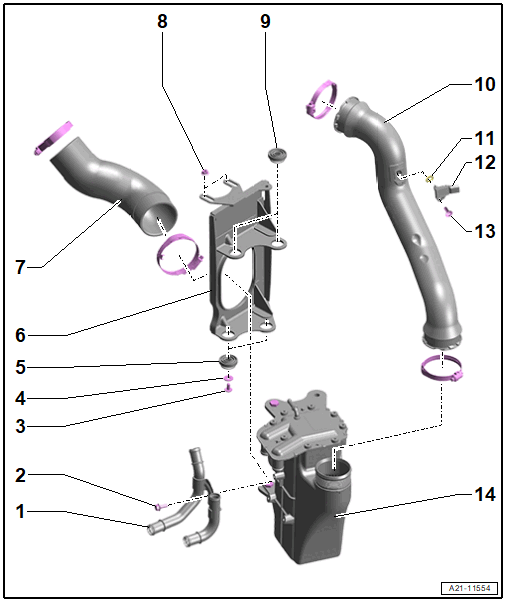

Overview - Charge Air System, 2.9L Engine Version 2
WARNING: This page is about a different car, the 2022 Audi S5, 2022 Audi RS 5, 2021 Audi S5, 2021 Audi RS 5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Coolant Pipes
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Washer
- Grommet
- Bracket
For the charge air cooler
- Air Duct Hose
- Nut
- 9 Nm
- Grommet
- Air Duct Hose
- O-Ring
- Not available separately; replace if leaking -item ) OVERVIEW - CHARGE AIR SYSTEM, 2.9L ENGINE VERSION 2 - List Item: Charge Air Pressure Sensor -G31- or damaged
- Bolt
- 7 Nm
- Repair solution for broken catch
- Thread cutting
- Charge Air Pressure Sensor -G31-
- Removing and Installing. Refer to Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING .
- Charge Air Cooler
- Removing and Installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING, 2.9L ENGINE .
