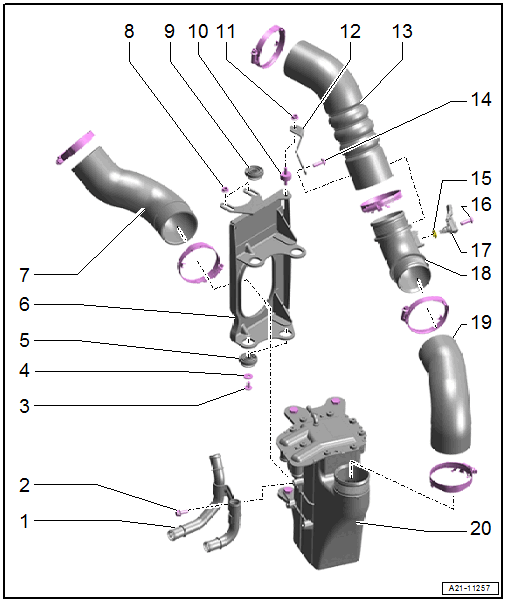

Overview - Charge Air System, 2.9L Engine Version 1
WARNING: This page is about a different car, the 2022 Audi S5, 2022 Audi RS 5, 2021 Audi S5, 2021 Audi RS 5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Coolant Pipes
- Bolt
- 9 Nm
- Bolt
- 9 Nm
- Washer
- Grommet
- Bracket
- For the charge air cooler
- Air Duct Hose
- Nut
- 9 Nm
- Grommet
- Bonded Rubber Bushing
- Nut
- 9 Nm
- Bracket
- For the air duct pipe
- Air Duct Hose
- Bolt
- 9 Nm
- O-Ring
- Not available separately; replace if leaking -item ) OVERVIEW - CHARGE AIR SYSTEM, 2.9L ENGINE VERSION 1 - List Item: Charge Air Pressure Sensor -G31- or damaged
- Bolt
- 7 Nm
- Thread cutting
- Repair solution for broken catch
- Charge Air Pressure Sensor -G31-
- Removing and Installing. Refer to Charge Air Pressure Sensor -G31-, REMOVING AND INSTALLING .
- Air Duct Pipe
- Air Duct Hose
- Charge Air Cooler
- Removing and Installing. Refer to CHARGE AIR COOLER, REMOVING AND INSTALLING, 2.9L ENGINE .
