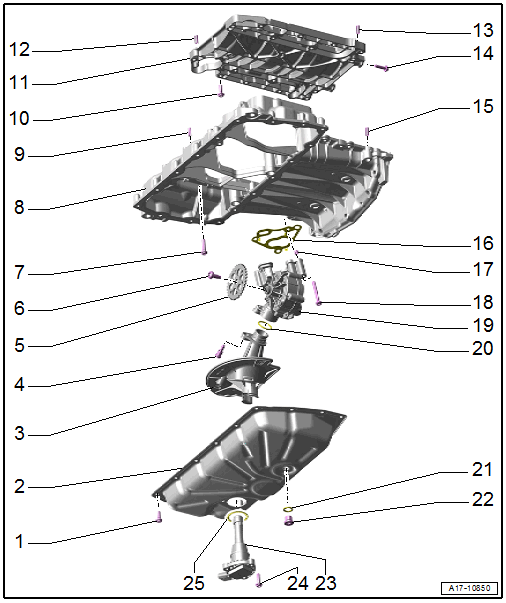

Overview - Oil Pan/Oil Pump
WARNING: This page is about a different car, the 2022 Audi S5, 2022 Audi RS 5, 2021 Audi S5, 2021 Audi RS 5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- If large quantities of metal shavings or abraded material are found in the engine oil while servicing the engine, the oil passages must be carefully cleaned to prevent subsequent damage. Replace the additional oil spray jet, engine oil cooler and oil filter element.
- Oil spray jet for piston cooling. Refer to OVERVIEW - PISTONS AND CONNECTING ROD .
- Bolt
- Tightening Specifications and Sequence. Refer to Fig 2.
- Always replace after removing.
- Oil Pan Lower Section
- Removing and installing. Refer to OIL PAN LOWER SECTION, REMOVING AND INSTALLING .
- Intake Tube
- Replace after removing.
- For the oil pump
- Bolt
- 8 Nm +90°
- Replace after removing.
- Chain Sprocket
- For the oil pump
- Bolt
- 20 Nm + 90°
- Always replace after removing.
- Bolt
- Oil Pan Upper Section
- Removing and installing. Refer to OIL PAN UPPER SECTION, REMOVING AND INSTALLING .
- Alignment Sleeve
- Bolt
- Always replace after removing.
- Tightening Specifications and Sequence. Refer to Fig 3.
- Oil Tray
- Removing and installing. Refer to OIL TRAY, REMOVING AND INSTALLING .
- Alignment Sleeve
- Alignment Sleeve
- Bolt
- Alignment Sleeve
- Seal
- Always replace after removing.
- Alignment Sleeve
- Bolt
- 8 Nm + 90°
- Always replace after removing.
- Oil Pump
- Do not disassemble
- Removing and installing. Refer to OIL PUMP, REMOVING AND INSTALLING .
- O-Ring
- Always replace after removing.
- Seal
- Always replace after removing.
- Oil Drain Plug
- 30 Nm
- Oil the threads
- Oil Level Thermal Sensor -G266-
- Removing and installing. Refer to Oil Level Thermal Sensor -G266-, REMOVING AND INSTALLING .
- Bolt
- 3 Nm + 90°
- Always replace after removing.
- Seal
- Always replace after removing.
Oil Pan Lower Section - Tightening Specifications and Sequence
- Replace the bolts that were tightened with an additional turn after removing them.
-- Tighten the bolts in the steps shown in the sequence:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 to 17- | Install by hand all the way |
| 2. | -1 to 17- | 3 Nm |
| 3. | -1 to 17- | 90° additional turn |
Oil Tray - Tightening Specifications and Sequence
- Replace the bolts that were tightened with an additional turn after removing them.
-- Tighten the bolts in stages as follows:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -arrows- | Install by hand all the way |
| 2. | -1 and 2- | 3 Nm |
| 3. | -arrows- | 3 Nm in a diagonal sequence |
| 4. | -1 and 2- | 90° additional turn |
| 5. | -arrows- | Turn an additional 90° in a diagonal sequence |
Oil Pan Upper Section - Tightening Specification and Sequence with the Lower Cover for the Camshaft Timing Chain Installed
Fig 4: Oil Pan Upper Section - Tightening Sequence with the Lower Cover for the Camshaft Timing Chain Installed
- Replace the bolts that were tightened with an additional turn after removing them.
-- Tighten the bolts in the steps shown in the sequence:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 to 21- | Install by hand all the way |
| 2. | -20 and 21- | 3 Nm |
| 3. | -1 to 19- | 3 Nm |
| 4. | -20 and 21- | 90° additional turn |
| 3. | -1 to 19- | 90° additional turn |
Oil Pan Upper Section - Tightening Specification and Sequence with the Lower Cover for the Camshaft Timing Chain Removed
Fig 5: Oil Pan Upper Section - Tightening Sequence with the Lower Cover for the Camshaft Timing Chain Removed
- Replace the bolts that were tightened with an additional turn after removing them.
-- Tighten the bolts in the steps shown in the sequence:
| Step | Bolts | Tightening Specification |
|---|---|---|
| 1. | -1 to 19- | Install by hand all the way |
| 2. | -1 to 19- | 3 Nm |
| 3. | -1 to 19- | 90° additional turn |
