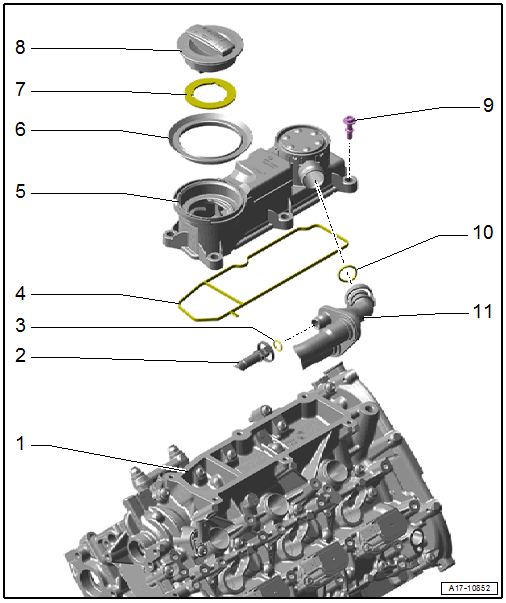

Overview - Crankcase Ventilation
WARNING: This page is about a different car, the 2022 Audi S5, 2022 Audi RS 5, 2021 Audi S5, 2021 Audi RS 5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
- Camshaft Housing
- Hose/Plug
- Depending on the version
- O-Ring
- Equipped on some models
- Not available separately; replace if leaking -item ) OVERVIEW - CRANKCASE VENTILATION - List Item: Hose/Plug or damaged
- Seal
- Always replace after removing.
- Crankcase Ventilation Module
- Removing and installing. Refer to CRANKCASE VENTILATION MODULE, REMOVING AND INSTALLING .
- Grommet
- Seal
- Always replace if damaged
- Cap
- Bolt
- Tightening Specifications and Sequence. Refer to Fig 2.
- O-Ring
- Not available separately; replace if leaking -item ) OVERVIEW - CRANKCASE VENTILATION - List Item: Hose or damaged
- Hose
- For the crankcase ventilation
- The crankcase ventilation hose cannot be removed from the air duct pipe without damage. Refer to OVERVIEW - CHARGE AIR SYSTEM .
Crankcase Ventilation Module - Tightening Specifications and Sequence
-- Tighten the bolts in the sequence shown to 9 Nm.
