Map Controlled Engine Cooling Thermostat -F265-, REMOVING AND INSTALLING: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Audi S5, 2022 Audi RS 5 Sportback, 2022 Audi RS 5, 2021 Audi S5, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
Preliminary work may be required depending on the model. Refer to MAP CONTROLLED ENGINE COOLING THERMOSTAT -F265-, REMOVING AND INSTALLING .

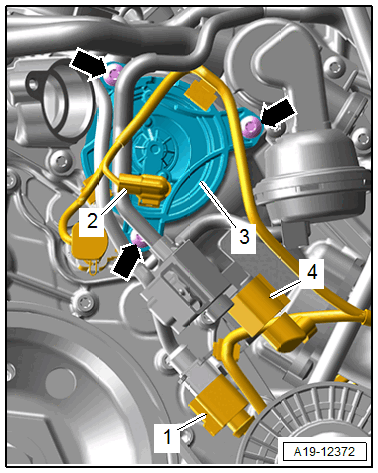

-- Remove the connector -1- from the bracket.
-- Remove the Cylinder Block Coolant Valve -N545- -4- from the bracket and push it to the side.
-- Disconnect the connector -2- and free up the wires on the Map Controlled Engine Cooling Thermostat -F265-.
-- Remove the bolts -arrows- and remove the Map Controlled Engine Cooling Thermostat -F265-.

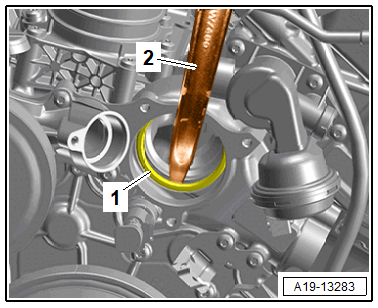

-- Dismount the seal -arrow- with the extractor lever -2-.
