Ribbed Belt TENSIONER For A/C Compressor, Removing And Installing, 2.9L Engine: Removing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Audi S5, 2022 Audi RS 5 Sportback, 2022 Audi RS 5, 2021 Audi S5, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
Depending on the model, preliminary work may be required. Refer to RIBBED BELT TENSIONER, REMOVING AND INSTALLING .
-- If still installed, release the tension on the ribbed belt. Refer to RIBBED BELT, REMOVING AND INSTALLING .

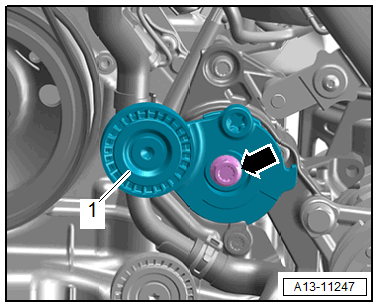

-- Push the coolant hose slightly to the side to remove the bolt -arrow- and remove the tensioner -1-. (shown on the engine without electrical compressor).
