Overview - Belt Pulley Side Sealing Flange
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Audi S5, 2022 Audi RS 5 Sportback, 2022 Audi RS 5, 2021 Audi S5, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

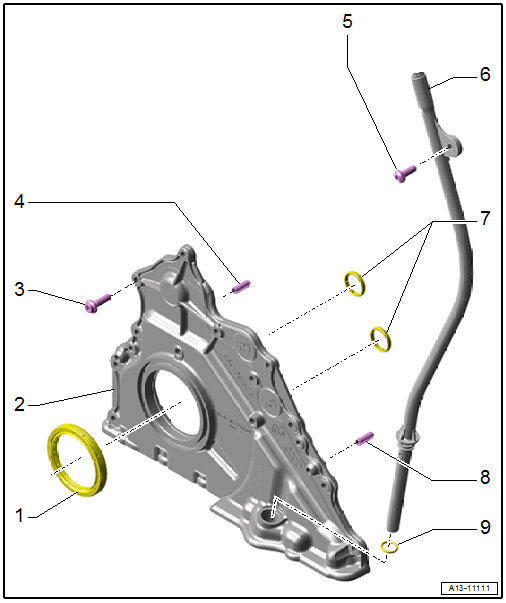

- Seal
- For the belt pulley side crankshaft
- Replacing. Refer to CRANKSHAFT SEAL, REPLACING, BELT PULLEY SIDE .
- Sealing Flange, Belt Pulley Side
- Removing and installing. Refer to SEALING FLANGE, REMOVING AND INSTALLING, BELT PULLEY SIDE .
- Bolt
- Tightening Specifications and Sequence. Refer to Fig 2.
- Alignment Sleeve
- Bolt
- 9 Nm
- Oil Dipstick Tube
- Seals
- Always replace after removing.
- Alignment Sleeve
- O-Ring
- Always replace after removing.
Ribbed Belt Pulley Side Sealing Flange - Tightening Specifications and Sequence
- Replace the bolts that were tightened with an additional turn after removing them.
-- Tighten the bolts in the steps shown in the sequence:
| Step | Bolts | Tightening Specification/Additional Turn |
|---|---|---|
| 1. | -1 to 17- | 3 Nm |
| 2. | -1 to 17- | 90° additional turn |
