Crankshaft, Removing And Installing: Installing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Audi S5, 2022 Audi RS 5 Sportback, 2022 Audi RS 5, 2021 Audi S5, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
Install in reverse order of removal and note the following:
- Replace the bolts that were tightened with an additional turn after removing them.

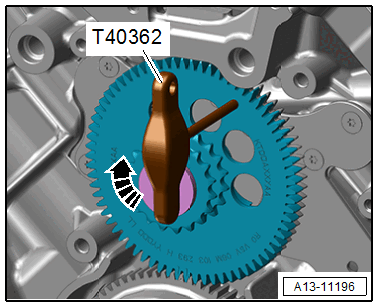

- Lock the gear backlash with the Adjusting Pin :T40362 .
-- Note the allocation:

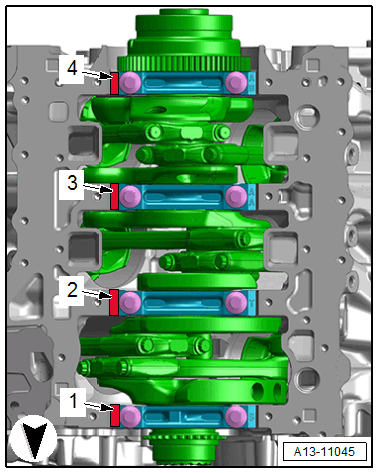

- Bearing Cap. Refer to Figure.
- Bearing Shells. Refer to MAIN BEARING SHELLS ALLOCATION .
-- Coat the contact surface of the bearing shells with engine oil.
-- Move the crankshaft into the installation position and slide on and pay attention to the markings:
- The mark -A- from the crankshaft -1- must be positioned between both marks -B- from the gear -2- for the balance shaft.
