Roller Bearing, Replacing: Installing
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Audi S5, 2022 Audi RS 5 Sportback, 2022 Audi RS 5, 2021 Audi S5, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
-- Position the correct side of the adapter on the roller bearing.
- The bevel -arrow- faces toward the roller bearing and specifies the installation depth.
-- Align the Adapter : T40395/3 .
- The side without the bevel -arrows- faces down.

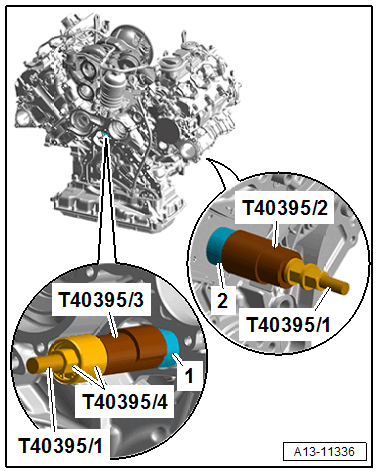

-- Install the front roller bearing -1- and the rear roller bearing -2- in all the way using the Spindle :T40395/1 , Adapter :T40395/2 and Adapter :T40395/3 by turning the Nut :T40395/4 .
- The labeled sides of the roller bearing face toward the outside.
-- Install the balance shaft. Refer to BALANCE SHAFT, REMOVING AND INSTALLING .
-- Install the crankshaft. Refer to OVERVIEW - CRANKSHAFT .
