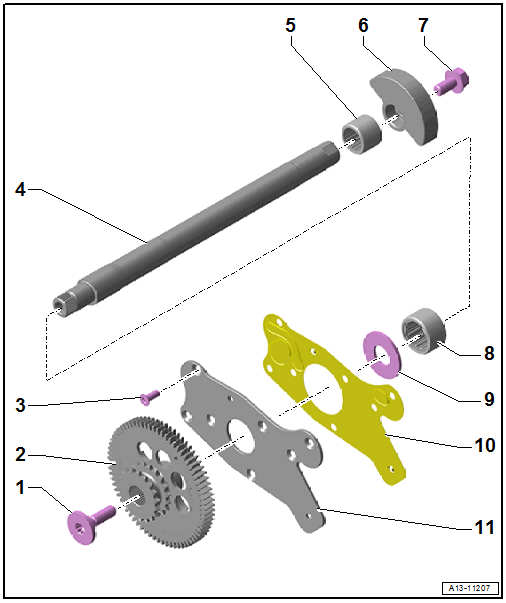

Overview - Balance Shaft
WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Audi S5, 2022 Audi RS 5 Sportback, 2022 Audi RS 5, 2021 Audi S5, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.
- Bolt
- 40 Nm + 45°
- Always replace after removing.
- Gear
- With the chain sprocket for the camshaft timing chain
- Bolt
- 9 Nm
- Balance Shaft
- Removing and installing. Refer to BALANCE SHAFT, REMOVING AND INSTALLING .
- Roller Bearing
- Replacing. Refer to ROLLER BEARING, REPLACING .
- Balance Weight
- Can only be placed on the balance shaft in one position
- Bolt
- 40 Nm + 90°
- Always replace after removing.
- Roller Bearing
- Replacing. Refer to ROLLER BEARING, REPLACING .
- Thrust Washer
- Seal
- Always replace after removing.
- Gear Carrier
