Balance Shaft, Removing And Installing: Removing

• The transmission is removed. Refer to the appropriate service information .

-- Remove the camshaft timing chains. Refer to CAMSHAFT TIMING CHAIN, REMOVING AND INSTALLING .

-- Tighten the :T40049  with the bolts -1 and 2- on the crankshaft.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the belt pulley side sealing flange. Refer to SEALING FLANGE, REMOVING AND INSTALLING, BELT PULLEY SIDE .

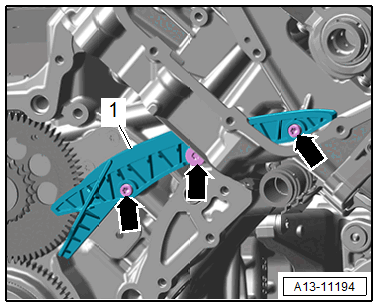

-- Remove bolts -arrows- and remove guide rail -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove guide pins -arrows- and remove the guide rail -1-.

Courtesy of AUDI OF AMERICA, LLC

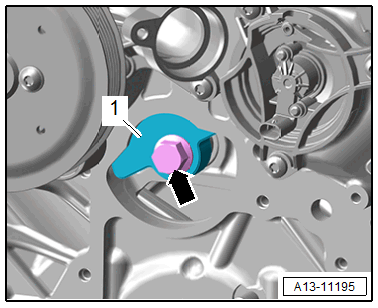

-- On the belt pulley side remove the bolt -arrow- to do so counterhold the crankshaft using the :T40049  . (The balance weight -1- is removed later).

Courtesy of AUDI OF AMERICA, LLC

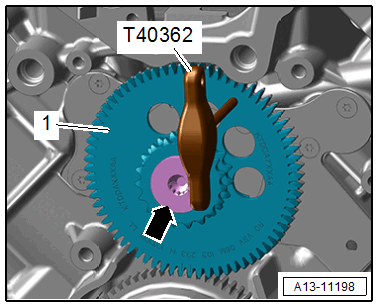

-- Lock the gear backlash on the gear to do so insert the :T40362  all the way in the gear and turn 180° clockwise in direction of -arrow-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -arrow- to do so counterhold the crankshaft using the :T40049  .

Courtesy of AUDI OF AMERICA, LLC

-- Remove the gear -1-.

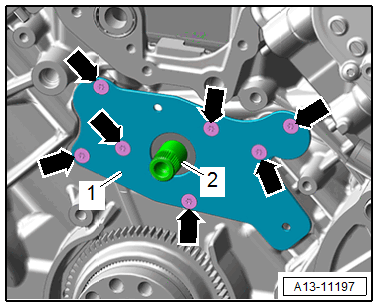

-- Remove the bolts -arrows- and remove the balance shaft gear carrier -1-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the balance shaft -2- toward the transmission side from the cylinder block and at the same time remove the balance weight on the belt pulley side.
