Timing Chain Guard Upper Section, Removing And Installing: Removing

• When installing, install all heat shield boots back in the same positions.

-- Remove the rear high pressure pipe. Refer to HIGH PRESSURE PIPE, REMOVING AND INSTALLING .

Cylinder Bank 1 (Right):

Courtesy of AUDI OF AMERICA, LLC

-- If installed, remove the Coolant Recirculation Pump -V50-. Refer to ELECTRIC COOLANT PUMP, REMOVING AND INSTALLING .

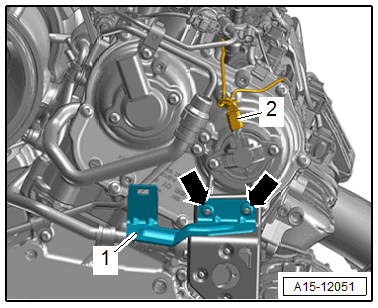

-- Disconnect the connector -2- for the Camshaft Adjustment Valve 1 -N205- and free up the wire.

-- Remove the double bolt -2- and bolts -1- and remove the bracket for the After-Run Coolant Pump -V51-.

Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts in the following sequence: -8 to 1-.

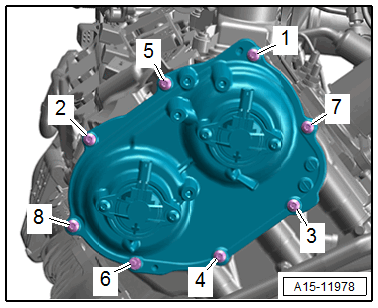

Fig 1: Cylinder Bank 1 Timing Chain Cover (Right) - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

Cylinder Bank 2 (Left):

Courtesy of AUDI OF AMERICA, LLC

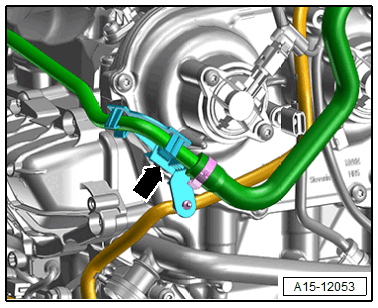

-- Unclip the bracket -arrow- using the vacuum hose from the timing chain cover and push to the side.

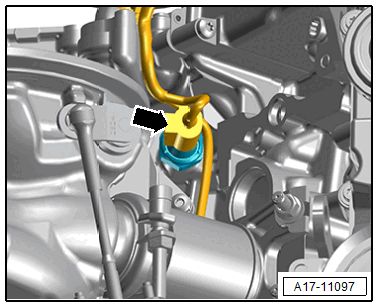

-- Open the heat shield boot and disconnect the connector -arrow- on the Oil Pressure Switch -F22-. (shown on a 3.0L engine).

Courtesy of AUDI OF AMERICA, LLC

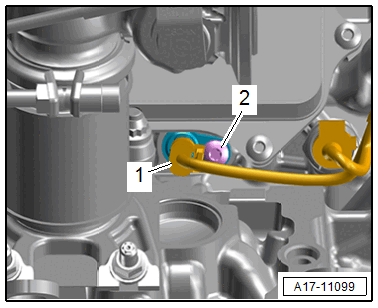

-- Disconnect the connector -1- on the Oil Temperature Sensor -G8-. (shown on a 3.0L engine).

Courtesy of AUDI OF AMERICA, LLC

-- Free up the wiring harness from the timing chain cover.

-- Remove the bolts in the following sequence: -8 to 1-.

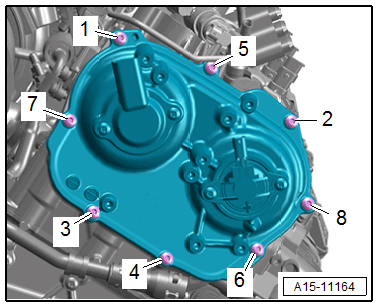

Fig 2: Cylinder Bank 2 Timing Chain Cover (Left) - Tightening Sequence

Courtesy of AUDI OF AMERICA, LLC

Continuation for Both Sides:

-- Carefully loosen and remove the timing chain cover from the bond.
