Lower Timing Chain Cover, Removing And Installing: Removing

WARNING: This page does not describe the selected car, but rather 7 other vehicles, including the 2022 Audi S5, 2022 Audi RS 5 Sportback, 2022 Audi RS 5, 2021 Audi S5, and 2021 Audi RS 5 Sportback. However, it is still accessible from the selected car via links, so may be relevant.

The transmission is removed. Refer to the appropriate service information .

-- Remove the drive plate. Refer to DRIVE PLATE, REMOVING AND INSTALLING .

-- Remove the upper timing chain covers. Refer to TIMING CHAIN GUARD UPPER SECTION, REMOVING AND INSTALLING .

-- Disconnect the connector -2- for the Engine Speed Sensor -G28-.

Fig 1: After-Run Coolant Pump -V51-

Courtesy of AUDI OF AMERICA, LLC

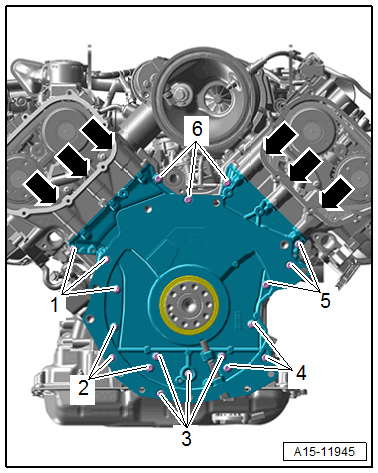

-- Remove the bolts -arrows- and -1 to 6-.

Fig 2: Lower Timing Chain Cover

Courtesy of AUDI OF AMERICA, LLC

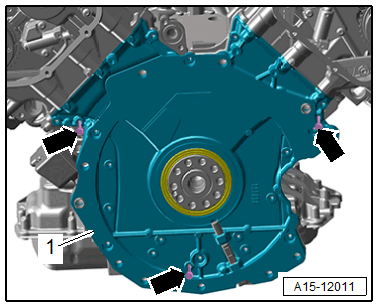

-- To loosen the lower timing chain cover -1-, install the three M6x20 bolts -arrows- until the stop.

Courtesy of AUDI OF AMERICA, LLC

-- Install each bolt ¹ /₂ turn, until the lower timing chain cover has loosened.

-- Remove the bolts again, remove the lower timing chain cover and remove the transmission side crankshaft seal.
