Engine Cover Temperature Sensor -G765-, Removing And Installing: Removing

WARNING: This page is about a different car, the 2022 Audi S5, 2022 Audi RS 5, 2021 Audi S5, 2021 Audi RS 5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Depending on the model, remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

-- Disconnect the connector -2-.

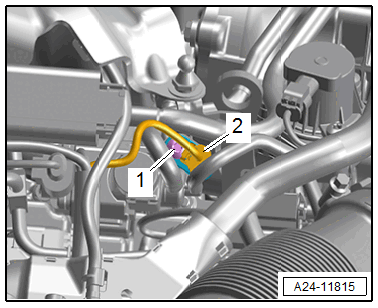

Fig 1: Engine Cover Temperature Sensor -G765-
GWWA24-11815Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolt -1- and then remove the Engine Cover Temperature Sensor -G765-.
