RECIRCULATION Valve, Removing And Installing, 3.0L Engine: Removing

WARNING: This page is about a different car, the 2022 Audi S5, 2022 Audi RS 5, 2021 Audi S5, 2021 Audi RS 5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.

-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

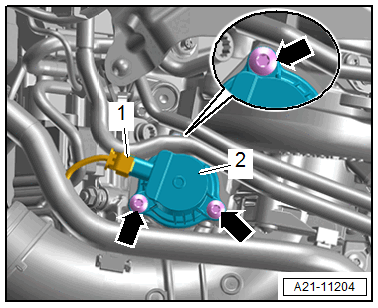

-- Disconnect the connector -1-.

GWWA21-11204Courtesy of AUDI OF AMERICA, LLC

-- Remove the bolts -arrows- and remove the Recirculation Valve, Bank 1 -N625- -2-.
