Intake Manifold, Removing And Installing, 3.0L Engine, AUDI A8: Removing
WARNING: This page is about a different car, the 2022 Audi S5, 2022 Audi RS 5, 2021 Audi S5, 2021 Audi RS 5, and 2020 Audi S5. However, it is still accessible from the selected car via links, so may be relevant.
-- Pay attention to the repair information. Refer to REPAIR INFORMATION .
-- Remove the engine cover. Refer to ENGINE COVER, REMOVING AND INSTALLING .

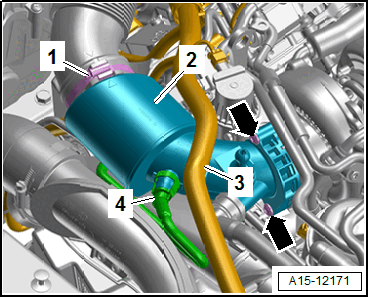

-- Loosen the hose clamp -1- and remove the air duct pipe.
-- Free up the wiring harness -3-.
-- Remove the crankcase ventilation hose -4- by pressing the release buttons on both sides.
-- Remove the bolts -arrows- and free up the intake manifold -2-.
-- If installed, remove the hose -1- for the EVAP system by pushing the release buttons on both sides.
-- Remove the crankcase ventilation hose -arrows- by pressing the release buttons on both sides.
-- Remove the intake manifold.
