Overview - Data Bus On Board Diagnostic Interface, Coupe, SPORTBACK

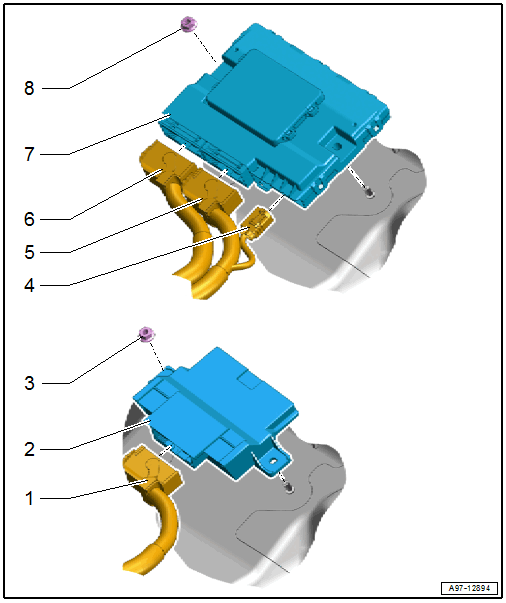

Fig 1: Data Bus On Board Diagnostic Interface

Courtesy of AUDI OF AMERICA, LLC

1. Connector
   • For Data Bus On Board Diagnostic Interface -J533- - Low
2. Data Bus On Board Diagnostic Interface -J533- - Low
   • Removing and Installing. Refer to Data Bus on Board Diagnostic Interface -J533-, Removing And Installing, Coupe, Sportback .
3. Nut
   • 3 Nm
   • Quantity: 2
4. Antenna Wire Connector
   • Quantity: 2
5. Connector
   • For Data Bus On Board Diagnostic Interface -J533- - High
6. Connector
   • For Data Bus On Board Diagnostic Interface -J533- - High
7. Data Bus On Board Diagnostic Interface -J533- - High
   • With Telematics Emergency Battery -A16-
   • Removing and installing the Telematics Emergency Battery -A16-. Refer to Mobile Online Services .
   • Removing and Installing. Refer to Data Bus on Board Diagnostic Interface -J533-, Removing And Installing, Coupe, Sportback .
8. Nut
   • 3 Nm
   • Quantity: 2
