Overview - Data Bus On Board Diagnostic Interface, Cabriolet

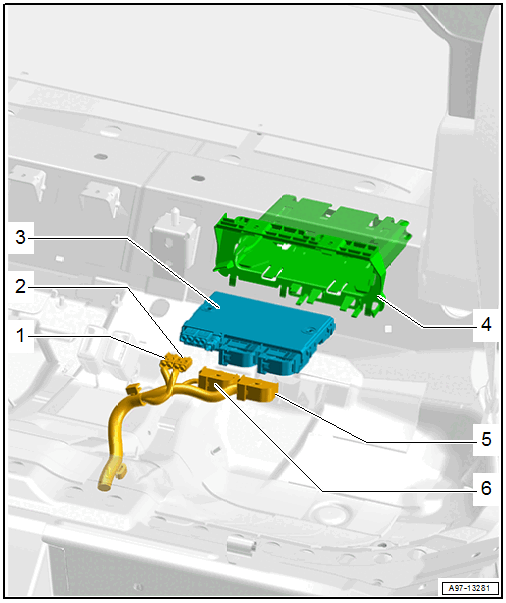

Fig 1: Data Bus Component Location

Courtesy of AUDI OF AMERICA, LLC

1. Antenna Wire Connector
2. Antenna Wire Connector
3. Data Bus on Board Diagnostic Interface -J533-
   • With Telematics Emergency Battery -A16-
   • Removing and installing the Telematics Emergency Battery -A16-. Refer to Mobile Online Services .
   • Removing and Installing. Refer to Data Bus On Board Diagnostic Interface -J533-, Removing And Installing, Cabriolet .
4. Mount
5. Connector
   • For Data Bus On Board Diagnostic Interface -J533- - High
6. Connector
   • For Data Bus On Board Diagnostic Interface -J533- - High
