Overview - Driver Assistance Systems Front Camera

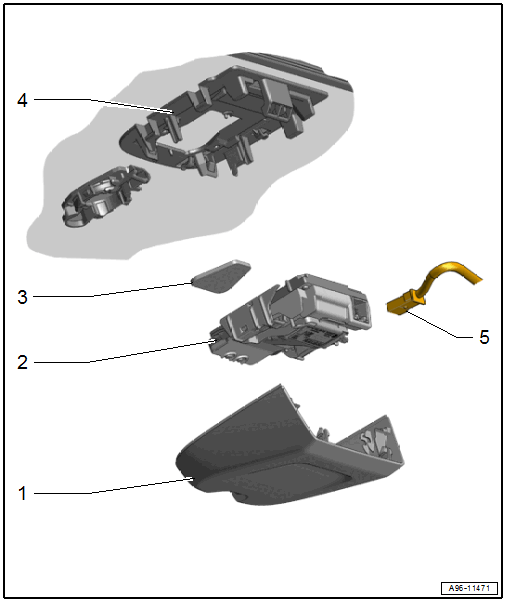

Fig 1: - Driver Assistance Systems Front Camera

Courtesy of AUDI OF AMERICA, LLC

1. Cover
2. Driver Assistance Systems Front Camera -R242-
   • Removing and installing. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, REMOVING AND INSTALLING .
   • Replacing. Refer to DRIVER ASSISTANCE SYSTEMS FRONT CAMERA, REPLACING .
3. Silicone Pad
   • Replace after removing.
4. Retaining Plate
   • Cannot be separated from the windshield
5. Connector
