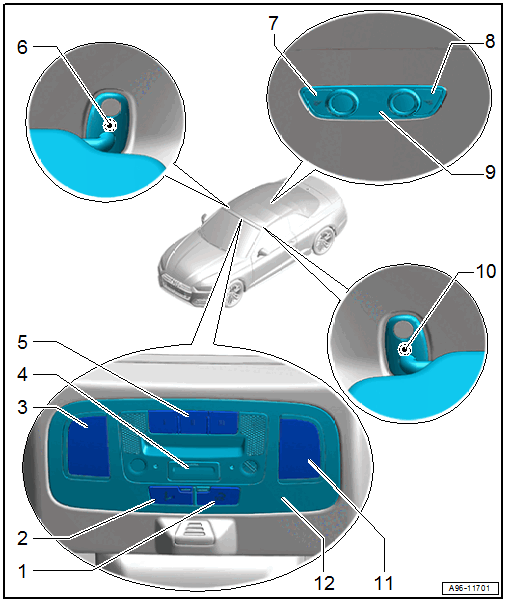

Overview - Controls In Roof Trim Panel, Cabriolet

Courtesy of AUDI OF AMERICA, LLC

1. Emergency Call Button -E276-
   • Integrated in Front Roof Module -WX3-
2. Roadside Assistance Button -E275-
   • Integrated in Front Roof Module -WX3-
3. Left Front Reading Lamp Button -E633-
   • Integrated in Front Roof Module -WX3-
4. Front Interior Lamp Button -E326-
   • Integrated in Front Roof Module -WX3-
5. Garage Door Opener Control Head -E284-
   • Removing and Installing. Refer to Garage Door Opener Control Head -E284-, REMOVING AND INSTALLING, CABRIOLET .
6. Front Passenger Vanity Mirror Lamp Contact Switch -F148-
   • Integrated in the sun visor pivot bearing. Cannot be replaced separately if faulty.
   • Sun Visor, Replacing. Refer to SUN VISOR, REMOVING AND INSTALLING .
7. Right Rear Reading Lamp Switch 1 -E455-
8. Left Rear Reading Lamp Switch -E454-
9. Rear Interior Lamp
   • Removing and Installing. Refer to REAR INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING .
10. Driver Vanity Mirror Lamp Contact Switch -F147-
    • Integrated in the sun visor pivot bearing. Cannot be replaced separately if faulty.
    • Sun Visor, Replacing. Refer to SUN VISOR, REMOVING AND INSTALLING .
11. Right Front Reading Lamp Button -E634-
    • Integrated in Front Roof Module -WX3-
12. Front Roof Module -WX3-
    • Removing and Installing. Refer to FRONT INTERIOR LAMP/READING LAMP, REMOVING AND INSTALLING, CONVERTIBLE .
