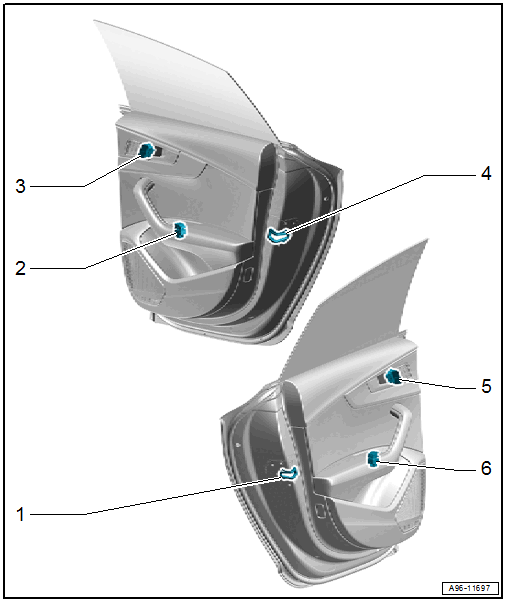

Overview - Controls In Rear Doors

Courtesy of AUDI OF AMERICA, LLC

Driver Side Rear Door Contact Switch -F505-
- Integrated in the door lock. Cannot be replaced separately if faulty.
- Replace the door lock. Refer to DOOR LOCK, REMOVING AND INSTALLING .
Passenger Side Rear Power Window Button -E713-
- Removing and Installing. Refer to REAR WINDOW REGULATOR BUTTON IN REAR DOOR, REMOVING AND INSTALLING .
Passenger Side Rear Interior Locking Button -E718-
- Removing and Installing. Refer to LEFT/RIGHT REAR INTERIOR LOCKING SWITCH -E273- / -E274-, REMOVING AND INSTALLING .
Passenger Side Rear Door Contact Switch -F506-
- Integrated in the door lock. Cannot be replaced separately if faulty.
- Replace the door lock. Refer to DOOR LOCK, REMOVING AND INSTALLING .
Driver Side Rear Interior Locking Button -E717-
- Removing and Installing. Refer to LEFT/RIGHT REAR INTERIOR LOCKING SWITCH -E273- / -E274-, REMOVING AND INSTALLING .
Driver Side Rear Power Window Button -E711-
- Removing and Installing. Refer to REAR WINDOW REGULATOR BUTTON IN REAR DOOR, REMOVING AND INSTALLING .
